UNI-T

UTG4000A Series

Waveform Generators

Rich modulation modes

The UTG4000A series provides a wide range of analog and digital modulation types, including AM, FM, PM, ASK, FSK, PSK, BPSK, QPSK, OSK, PWM, SUM, and QAM. These modulation types offer rich options for signal modulation.

Harmonic output

The UTG4000A series also features a harmonic output function, which allows for up to 16 harmonic outputs. Users can specify the order, amplitude, and phase of the harmonics according to their requirements. This flexibility allows for precise control and customization of harmonic signals.

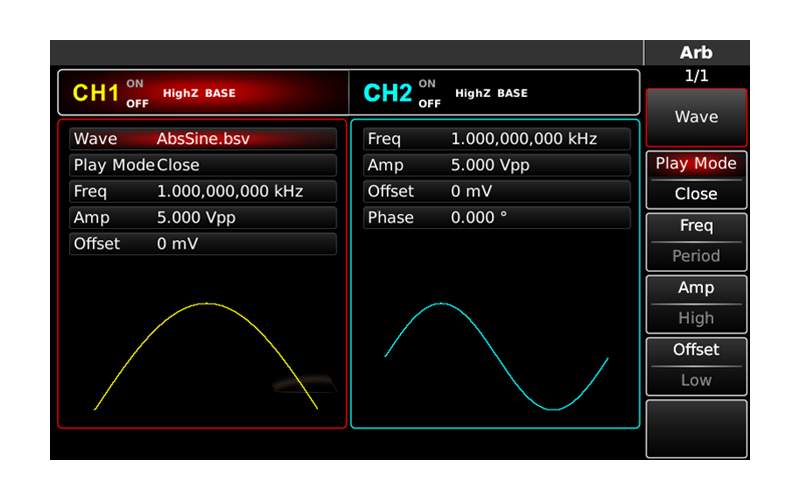

32Mpts memory depth & 7GB storage

The UTG4000A offers up to 160 built-in arbitrary waveforms, support up to 32Mpts arbitrary waveform memory depth, Additionally, it features 7GB of non-volatile waveform storage, providing ample storage capacity for waveform data.

Sweep function

Support 2 sweep modes include linear and logarithmic.

Unique digital interface

Optional digital signal output interface: SPI, IIC, UART

The UTG4000A Series waveform generators are applied to a wide range of application domain,integrating multiple waveforms for Function Generation, Arbitrary Waveform Generation,Pulse Generation,Harmonic Generation,Analog/Digital Modulation source. The UTG4000A Series is a waveform generator with high sampling rate up to 500MS/s, MAX waveform length up to 32Mpt. To generate stable, precise, low distortion signals The UTG4000A Series adopts Direct Digital Synthesizer (DDS) technology. User-friendly interface design with high resolution 8 inches display screen and rational panel layout to improve operational efficiency

200 MHz MAX. OUTPUT FREQUENCY
500 MSa/s SAMPLE RATE
16 bits VERTICAL RESOLUTION
2 CHANNELS
32Mpts ARBITRARY WAVE LENGTH
